    SHS-LVM Block - Stainless

    Long V-Style Block
    main product photo

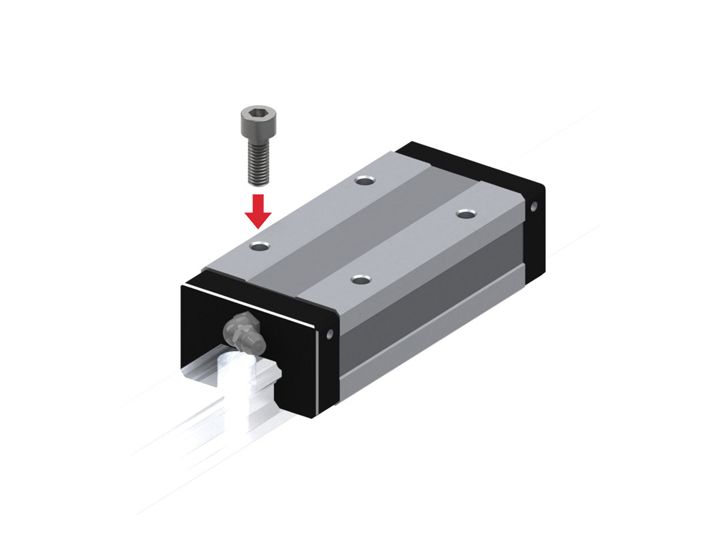

    The LM block has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated load.

    Carbon Steel version is also available

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Size Clear
    Preload Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Rail Item Total
    Size: 15
    Preload: No Preload
    		SHS15LV1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 20
    Preload: No Preload
    		SHS20LV1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 25
    Preload: No Preload
    		SHS25LV1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Related Products
    1. Stainless Rail (SHS-M)
      Stainless Rail (SHS-M)
    2. SHS-LV Block
      SHS-LV Block
    Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
    Radial
    Height
    M    		 Width
    W    		 Length
    L    		 B C S x l Pitch
    F    		 d1xd2xh Dynamic
    rating
    C    		 Static
    rating
    C0
    mm mm mm mm mm mm mm mm kN kN
    SHS15LVM 24 34 79.4 26 34 M4 x 4 60 4.5x7.5x5.3 17.2 31.9
    SHS20LVM 30 44 98 32 50 M5 x 5 60 6x9.5x8.5 28.1 50.3
    SHS25LVM 36 48 109 35 50 M6 x 6.5 60 7x11x9 36.8 64.7
    AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Block Type Block Code*1 Seal Type*2 Radial Clearance*3 Block Material
    SHS 20 C 1 SS

    _

    		 M BLOCK
    SHS 15 C 1 SS No Symbol: Normal No Symbol: Standard steel
    20 V C1: Light Preload M : Stainless steel
    25 R
    LC
    LV
    LR

    Note 1: This number is always 1 for interchangeable blocks Note 2: Contamination protection seal SS is standard for Model SHS-M. SS= end seals + side seals + inner seals

    units: µm
    Size Normal Light Preload
    15 -5 to 0 -12 to -5
    20 -6 to 0 -12 to -6
    25 -8 to 0 -14 to -8

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
